Our volunteers have been doing an amazing job of digitally stitching images of the original technical drawings in our Cook, Welton & Gemmell archive (some of which are almost 1m in length!). See below for some examples.
Please note: Inverted copies have been included to highlight technical details.
Background information obtained from ‘Cook, Welton & Gemmell, Shipbuilders of Hull and Beverley 1883-1963’ by Michael Thompson et al (Hutton Press 1999).
This slideshow requires JavaScript.

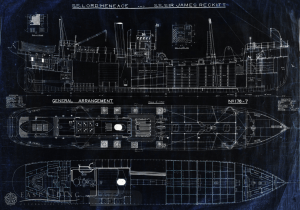

(Inverted ) ‘Lord Heneage’ Steam Trawler (Yard 176) Launched 10.03.1909
‘Lord Heneage’ Steam Trawler (Yard 176) Launched 10.03.1909

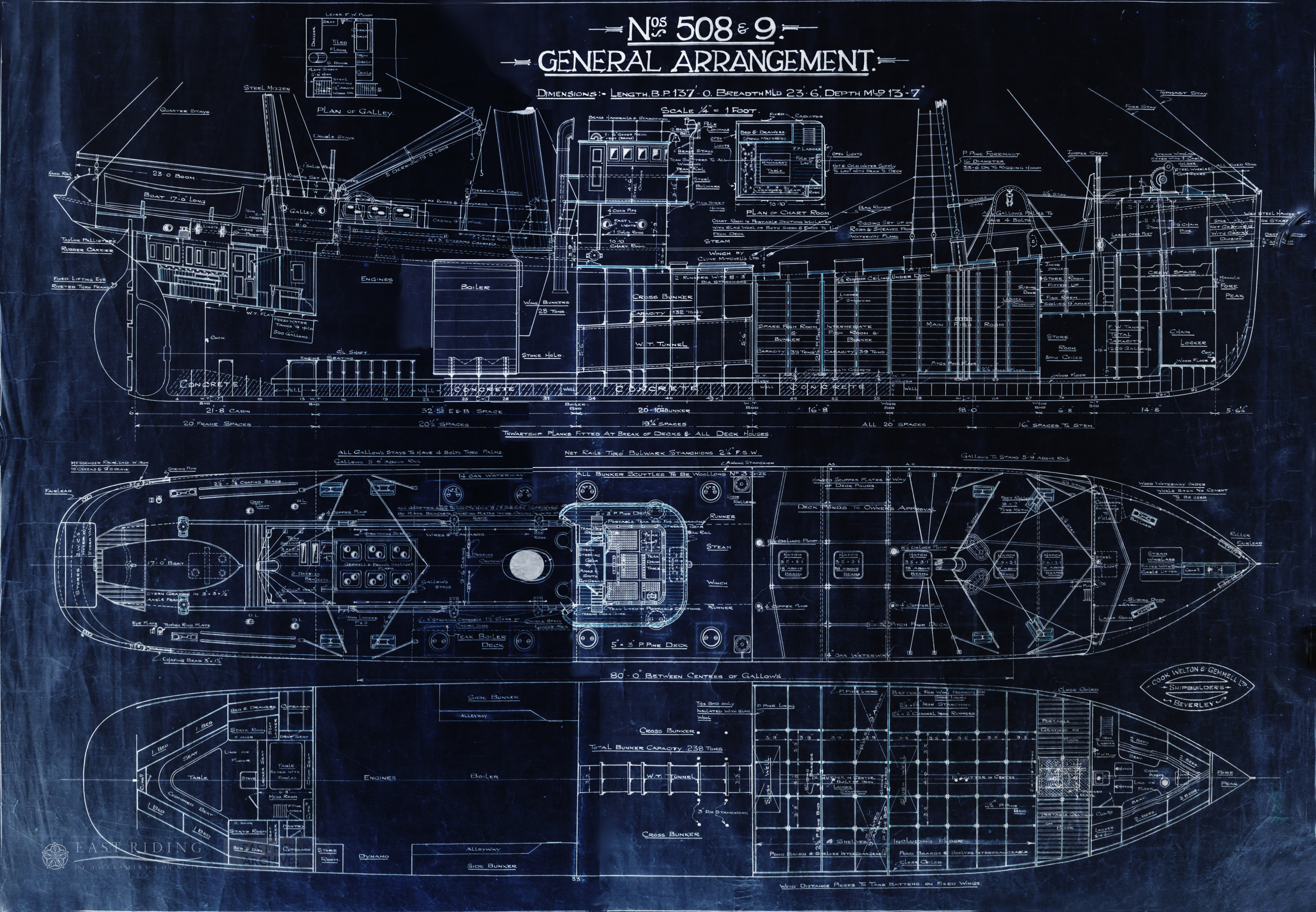

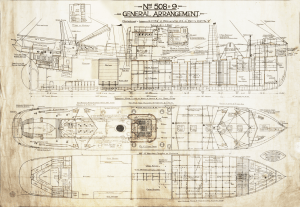

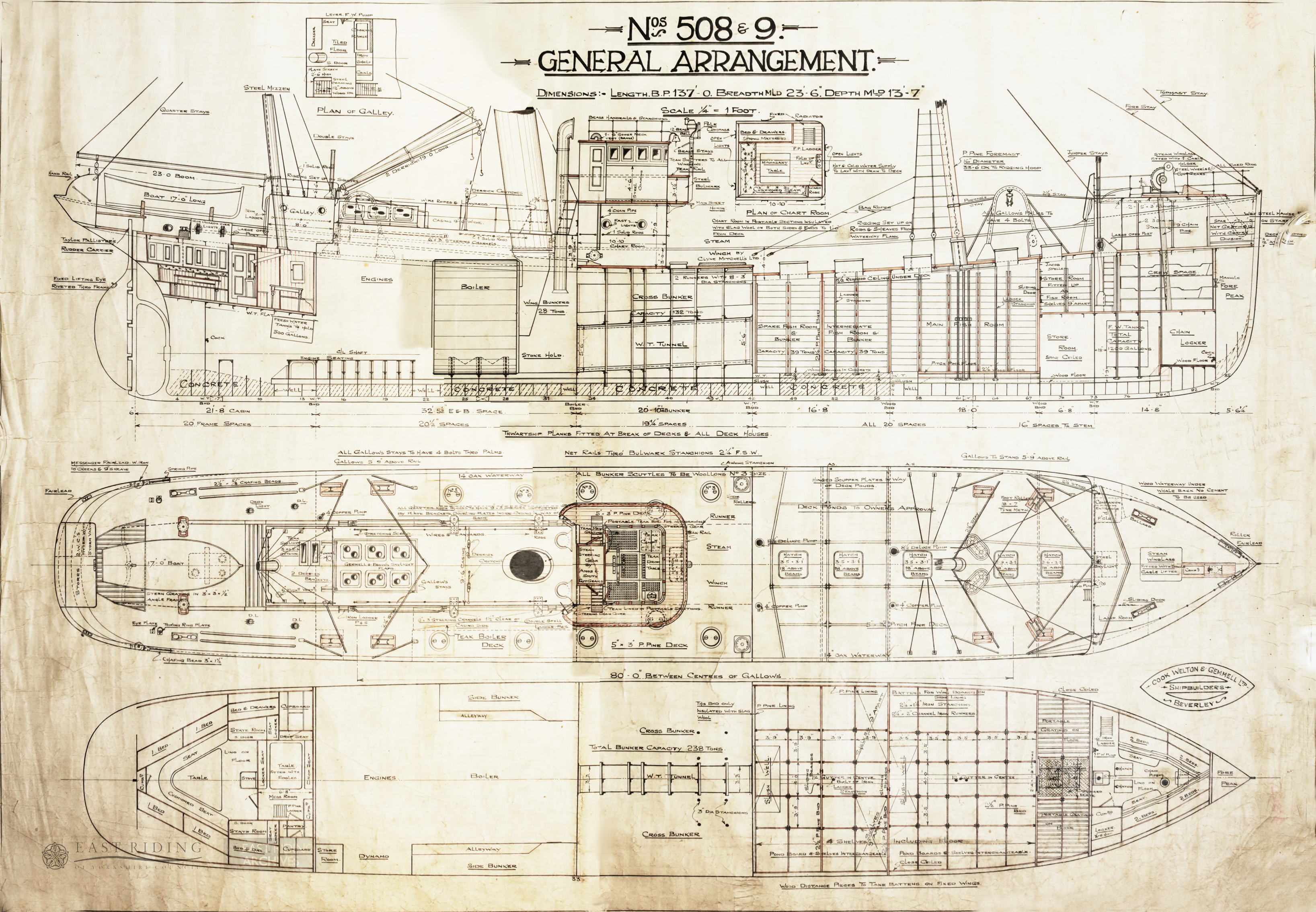

‘Sisapon’ Steam Trawler (Yard 508) Launched 30.10.1928
(Inverted) ‘Sisapon’ Steam Trawler (Yard 508) Launched 30.10.1928

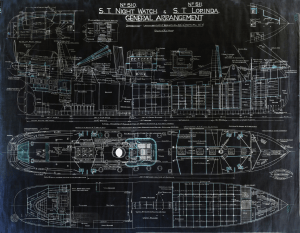

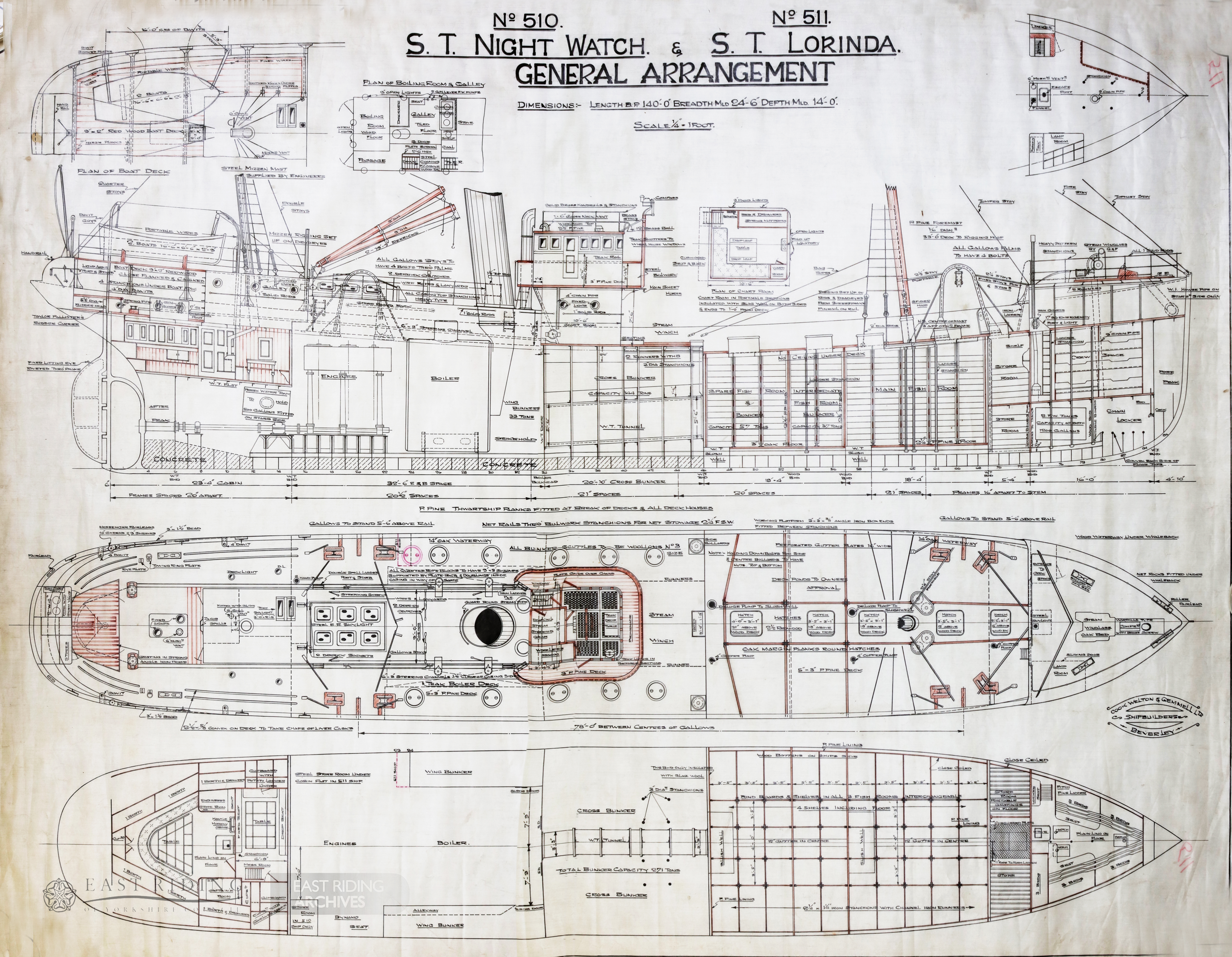

‘Lorinda’ Steam Trawler (Yard 511) Launched 28.11.1928
(Inverted) ‘Lorinda’ Steam Trawler (Yard 511) Launched 28.11.1928

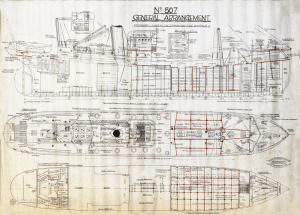

‘Loch Leven’ Steam Trawler (Yard 507) Launched 16.10.1928
(Inverted) ‘Loch Leven’ Steam Trawler (Yard 507) Launched 16.10.1928

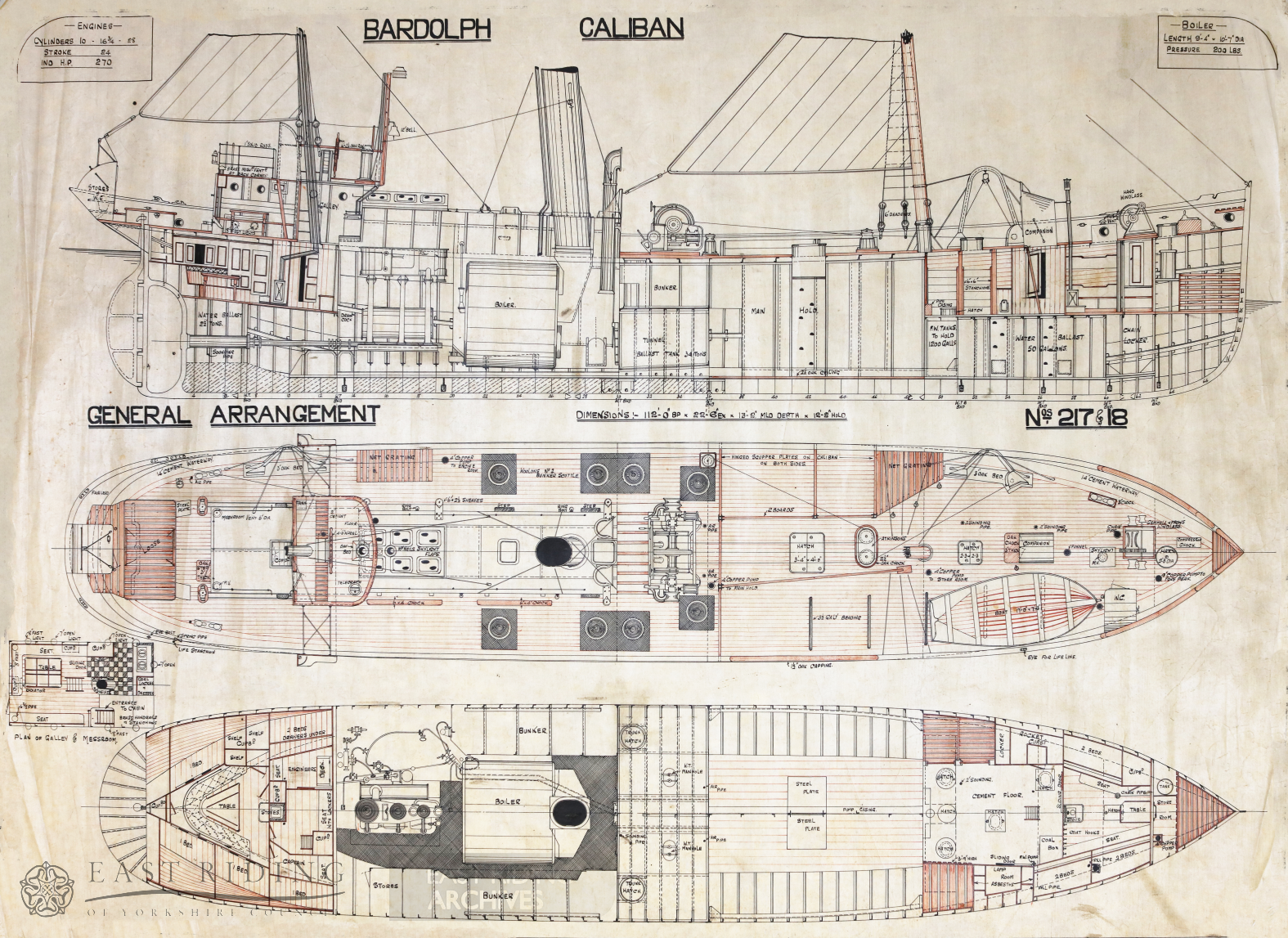

‘Caliban’ Steam Trawler (Yard 218) Launched 15.07.1911

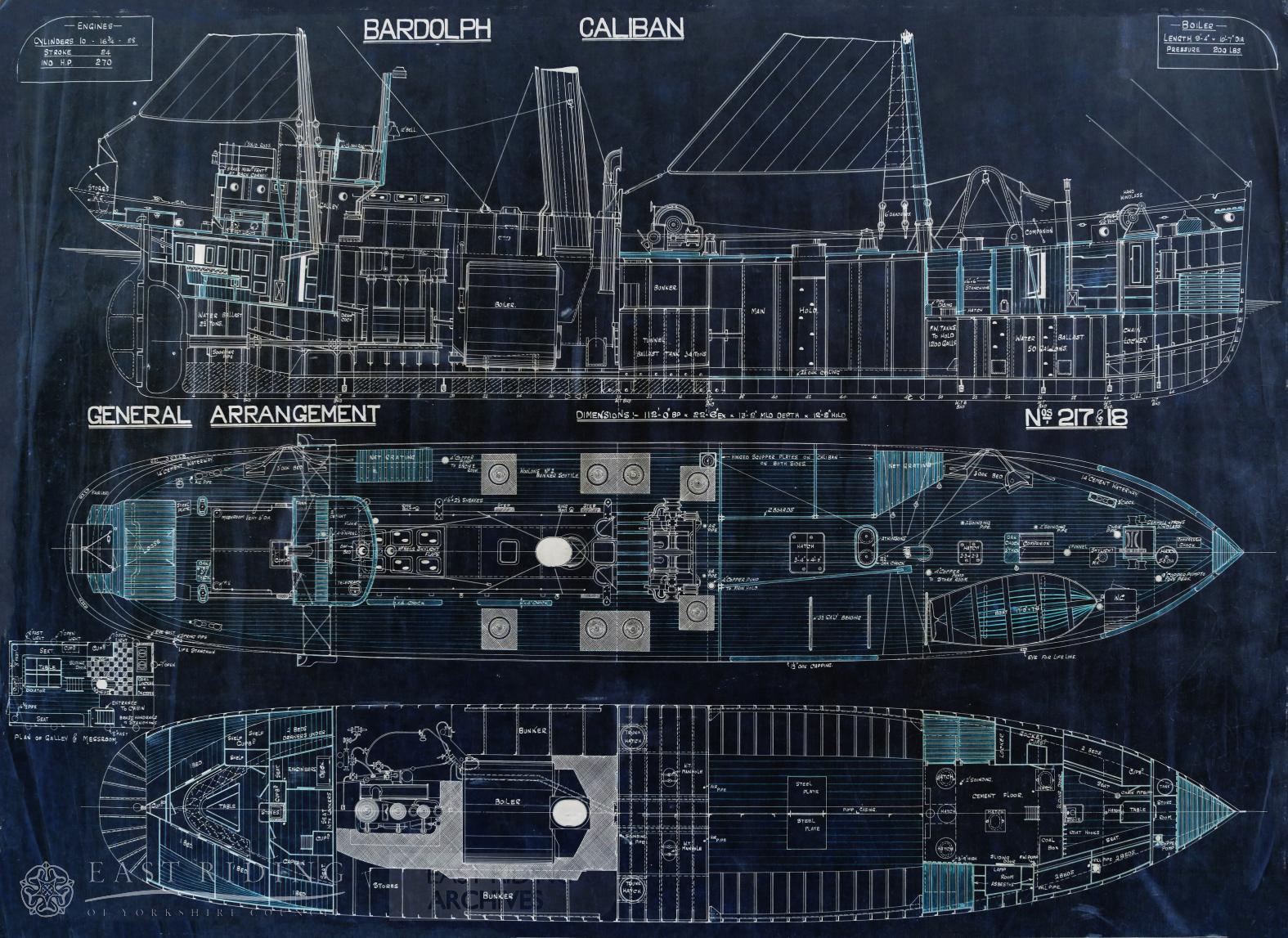

(Inverted) ‘Caliban’ Steam Trawler (Yard 218) Launched 15.07.1911

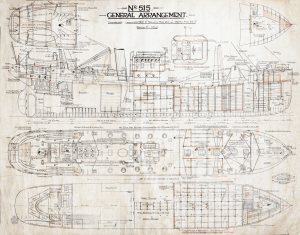

‘Monimia’ Steam Trawler (Yard 515) Launched 12.02.1929
(Inverted) ‘Monimia’ Steam Trawler (Yard 515) Launched 12.02.1929

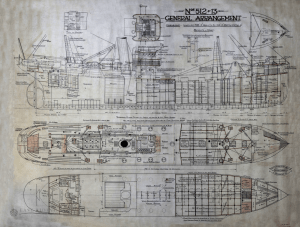

‘Fleming’ Steam Trawler (Yard 512) Launched 29.12.1928

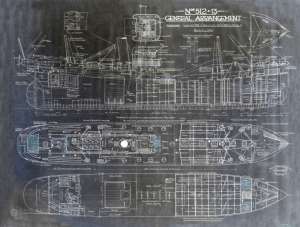

(Inverted) ‘Fleming’ Steam Trawler (Yard 512) Launched 29.12.1928

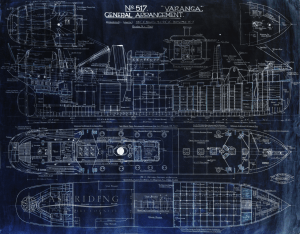

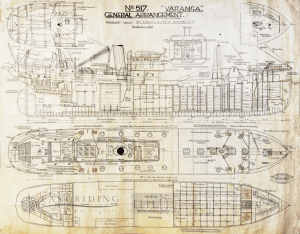

‘Varanga’ Steam Trawler (Yard 517) Launched 14.03.1929
(Inverted) ‘Varanga’ Steam Trawler (Yard 517) Launched 14.03.1929

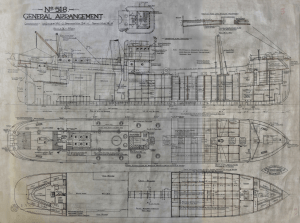

‘Hammond’ Steam Trawler (Yard 518) Launched 28.03.1929

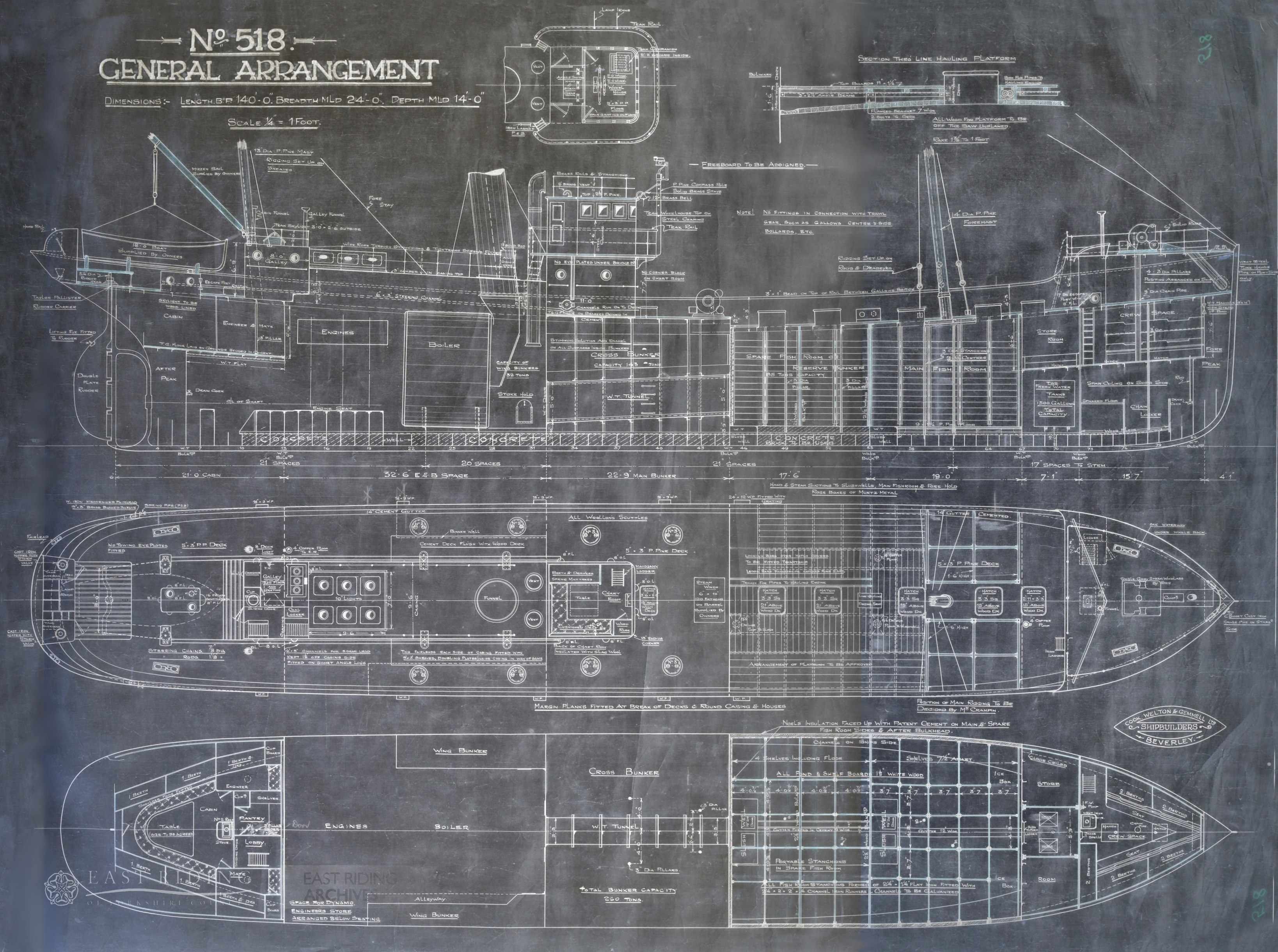

(Inverted) ‘Hammond’ Steam Trawler (Yard 518) Launched 28.03.1929

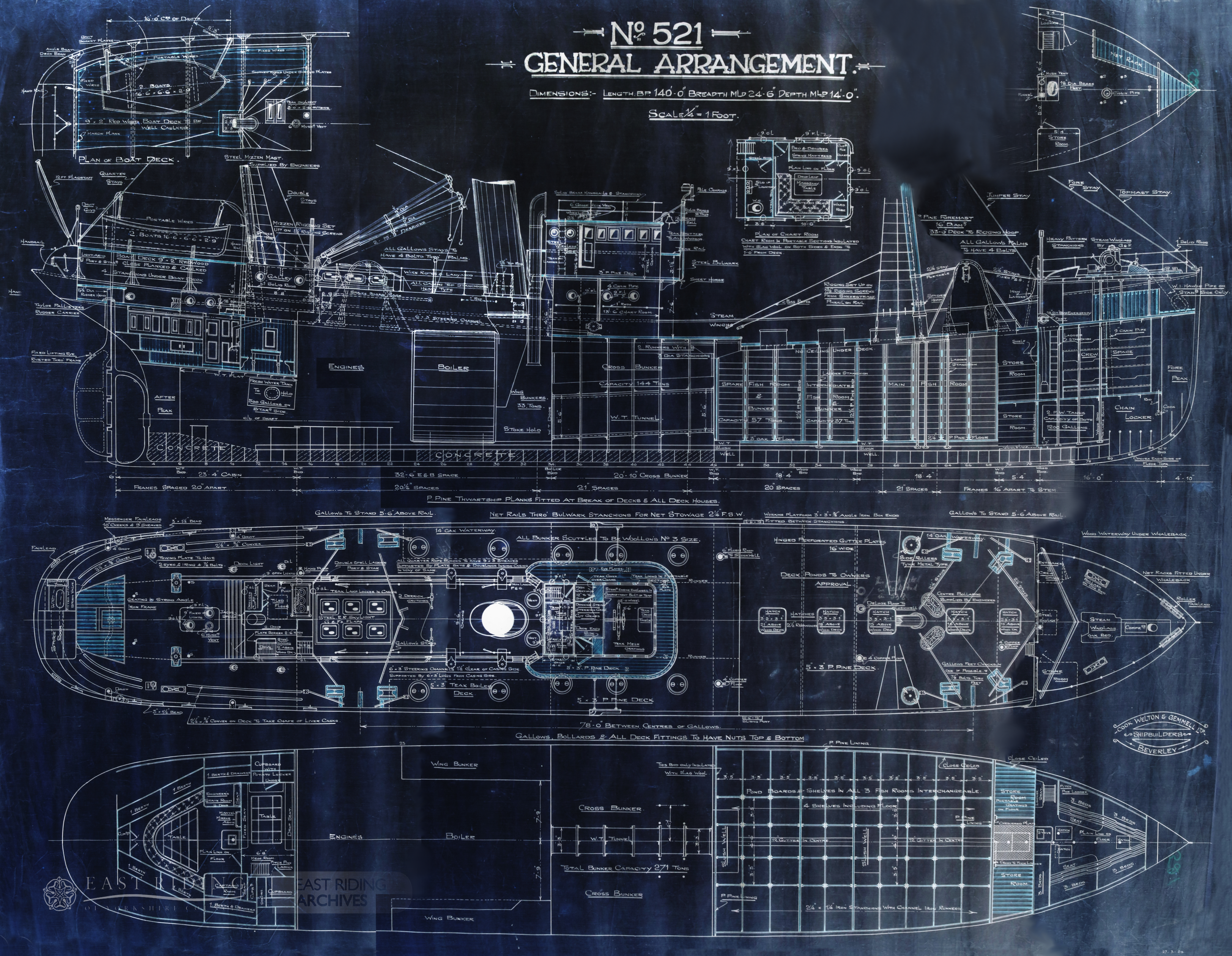

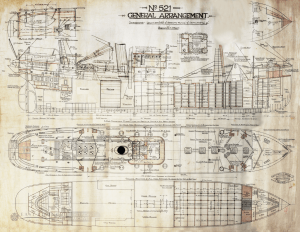

‘Gambri’ Steam Trawler (Yard 521) Launched 25.05.1929
(Inverted) ‘Gambri’ Steam Trawler (Yard 521) Launched 25.05.1929

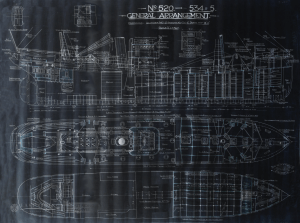

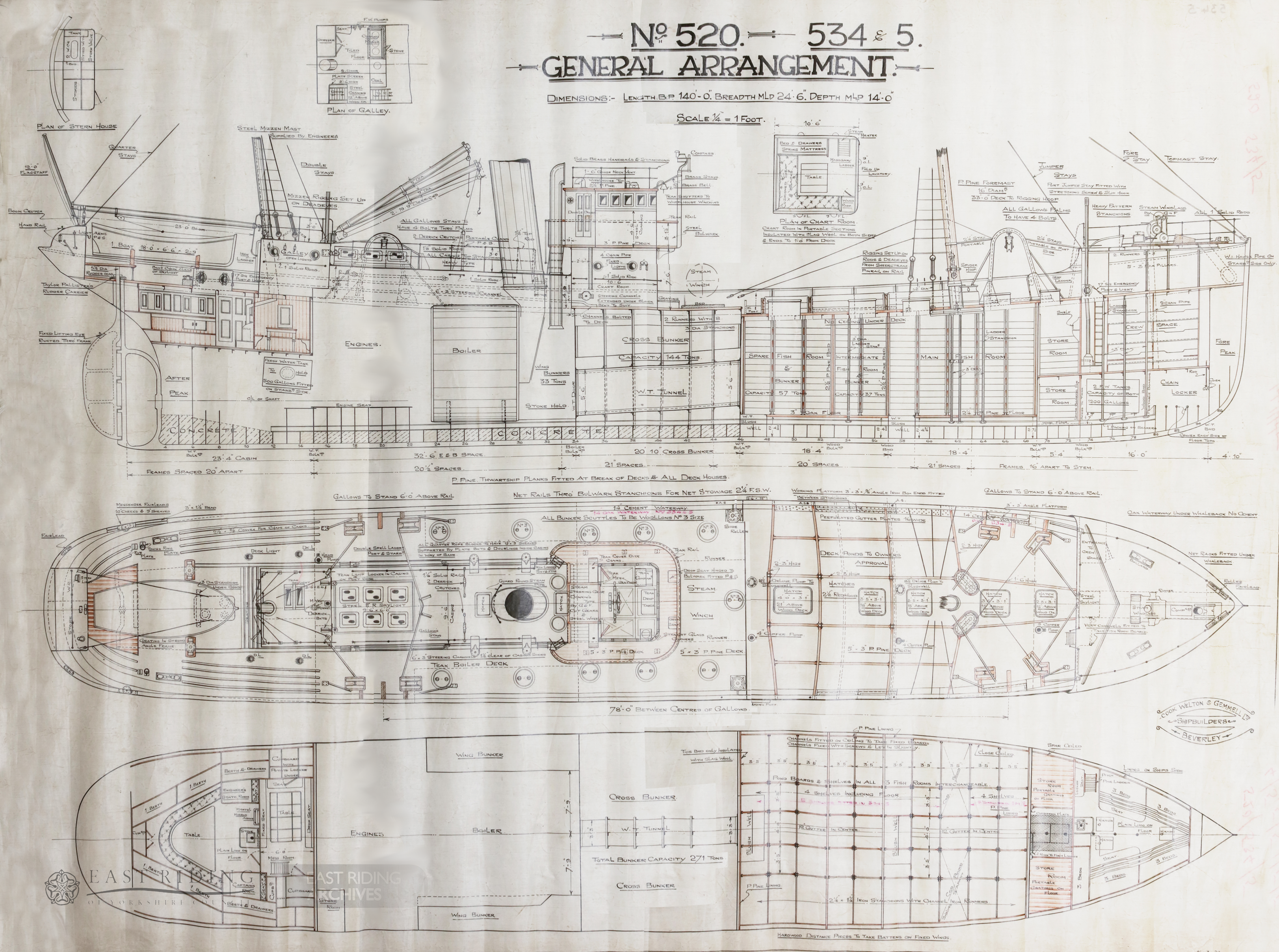

‘Lady Eleanor’ Steam Trawler (Yard 520) Launched 11.05.1929
(Inverted) ‘Lady Eleanor’ Steam Trawler (Yard 520) Launched 11.05.1929

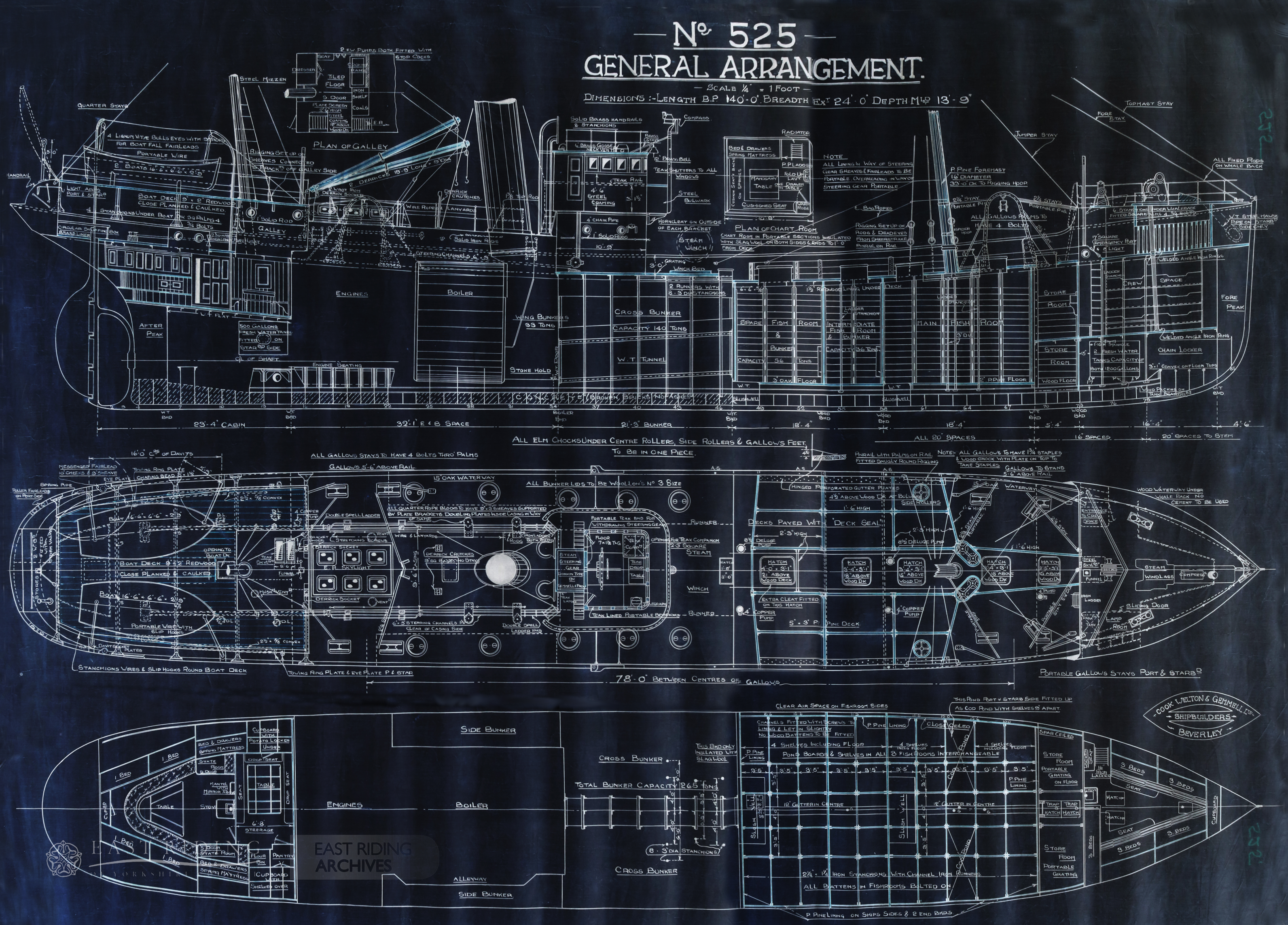

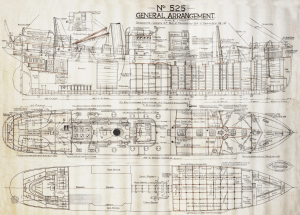

‘Beverlac’ Steam Trawler (Yard 525) Launched 23.07.1929
(Inverted) ‘Beverlac’ Steam Trawler (Yard 525) Launched 23.07.1929

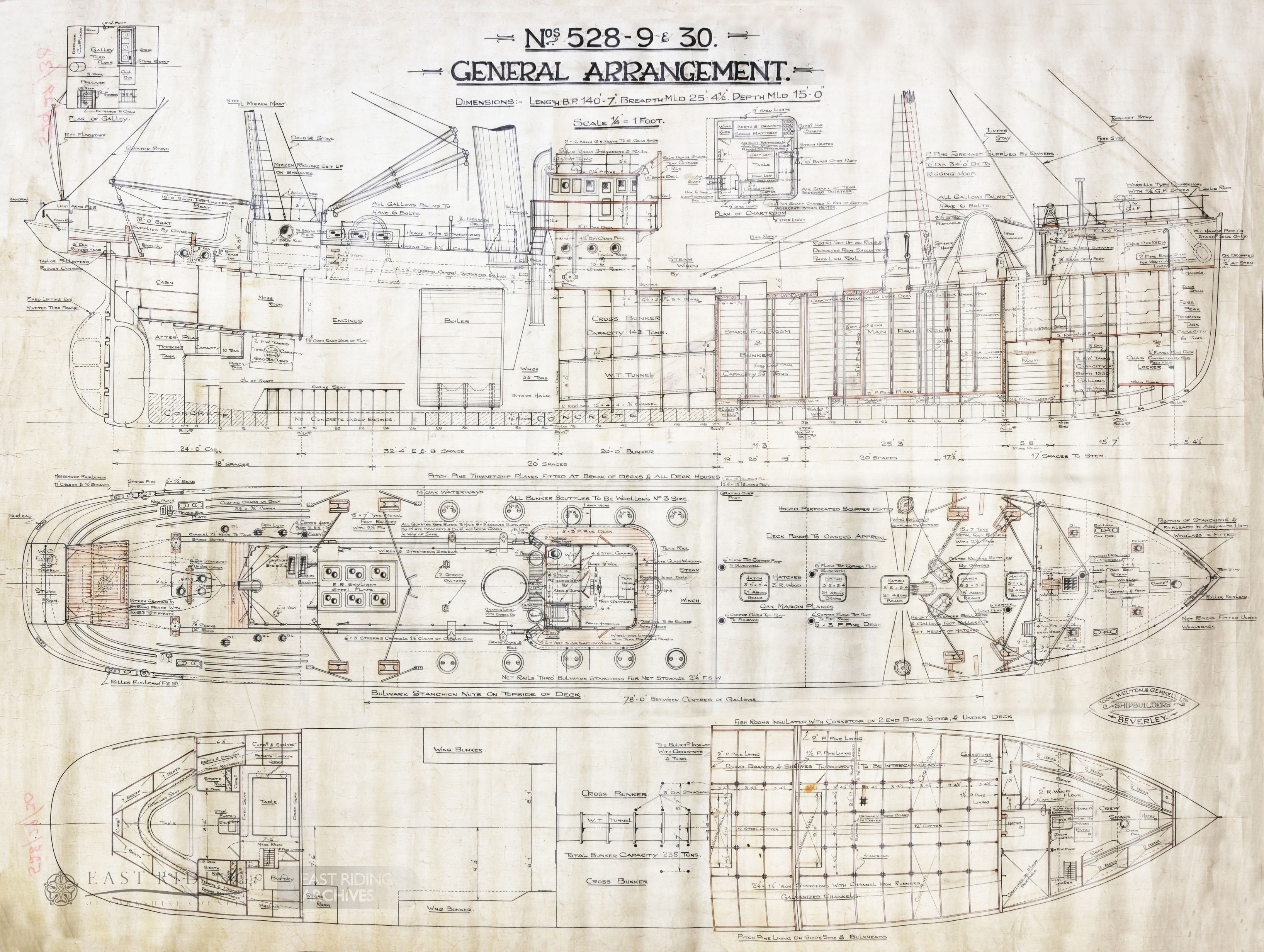

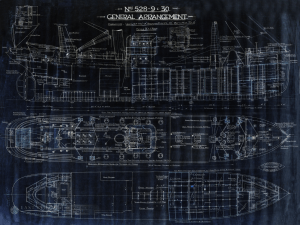

‘Cassio’ Steam Trawler (Yard 530) Launched 21.10.1929
(Inverted) ‘Cassio’ Steam Trawler (Yard 530) Launched 21.10.1929

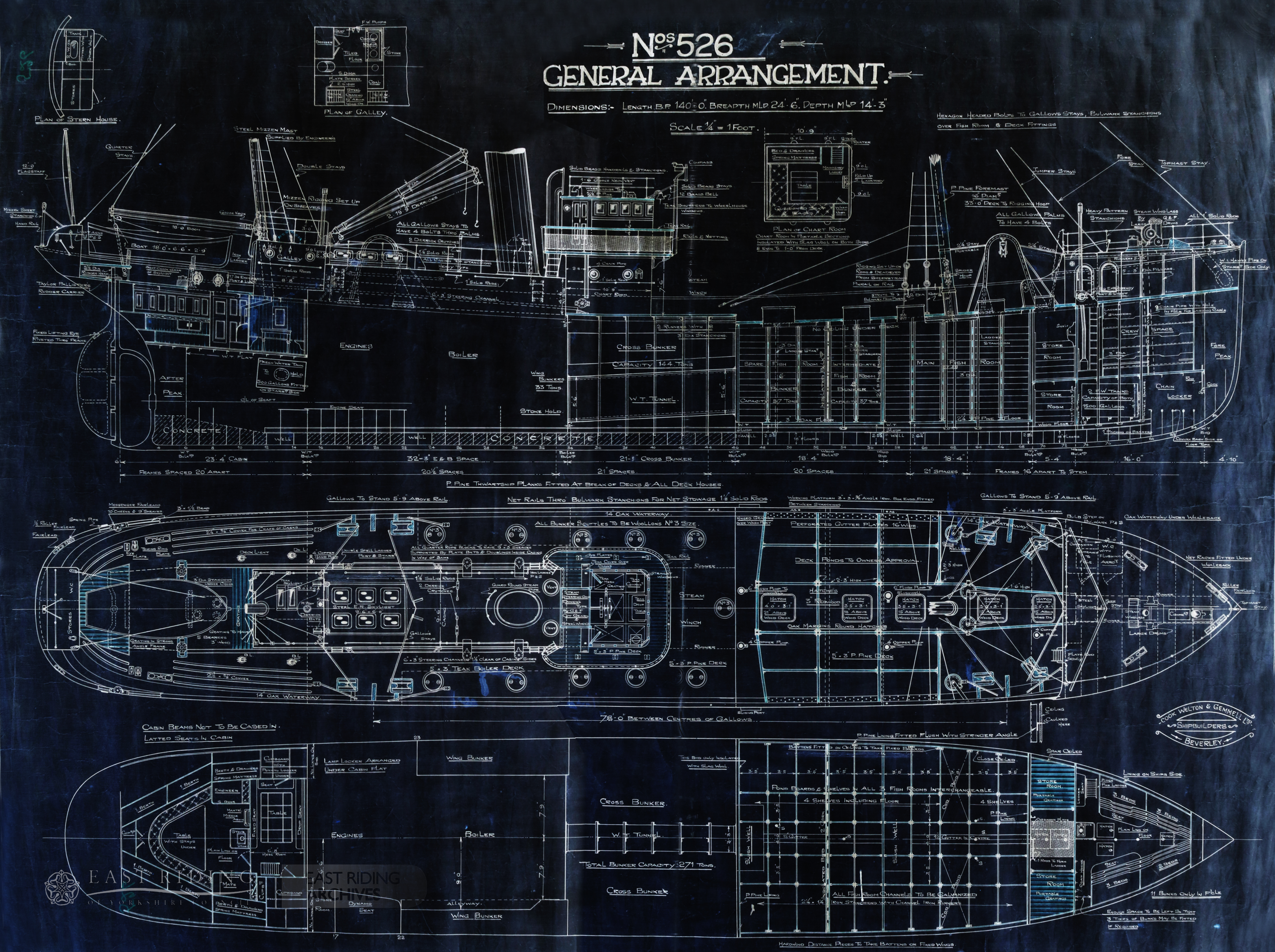

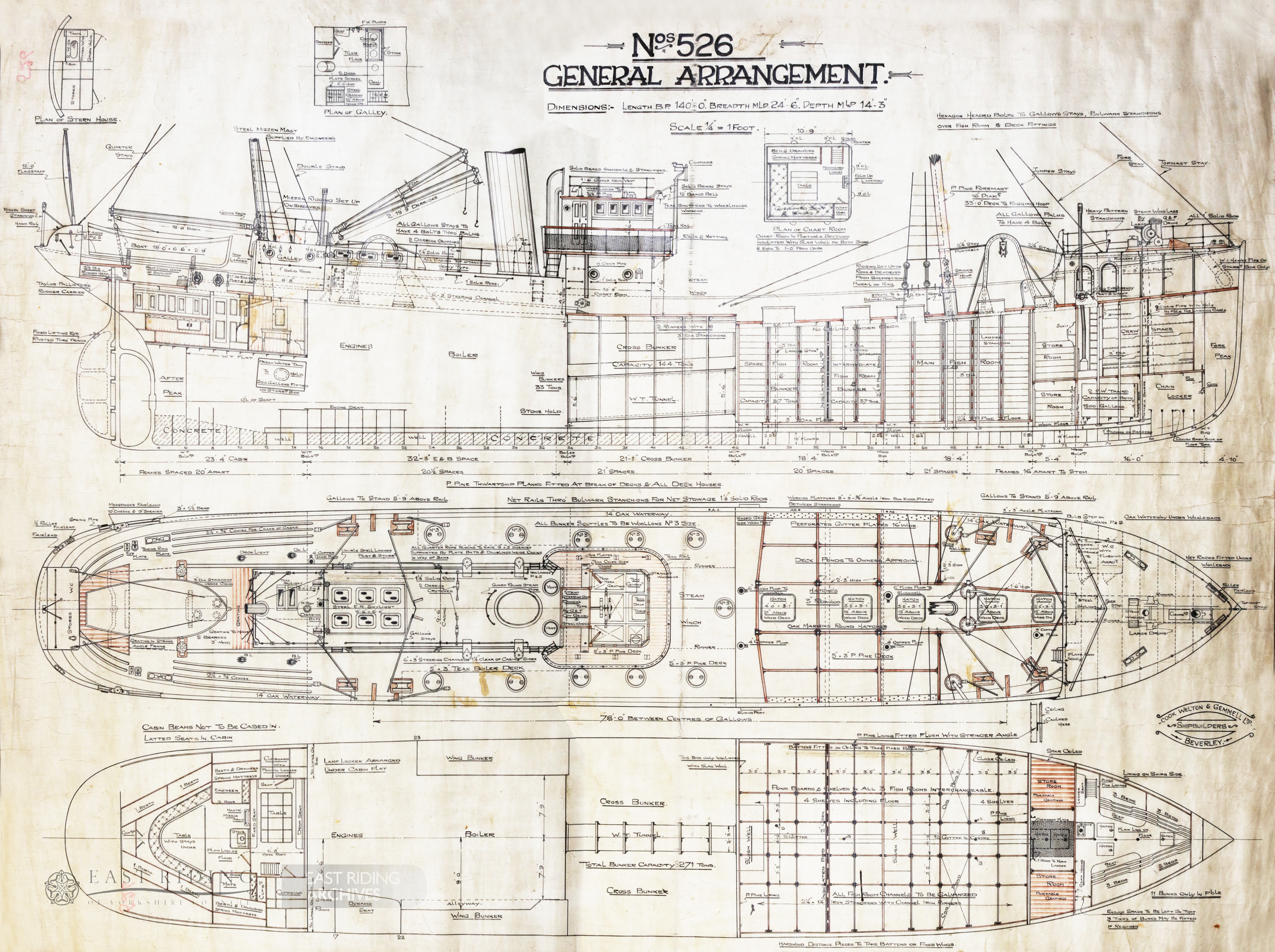

‘Galvani’ Steam Trawler (Yard 526) Launched 07.08.1929
(Inverted) ‘Galvani’ Steam Trawler (Yard 526) Launched 07.08.1929

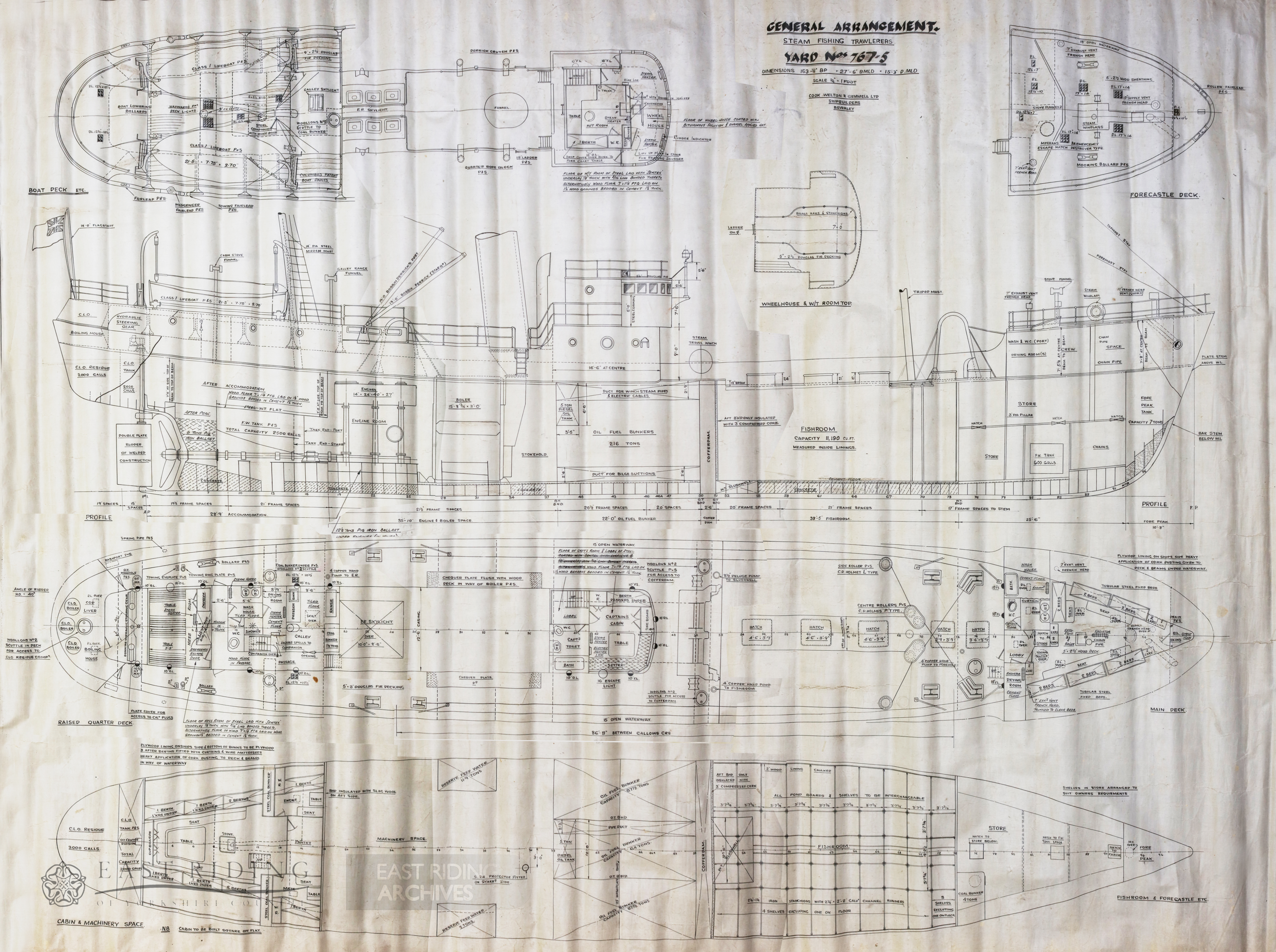

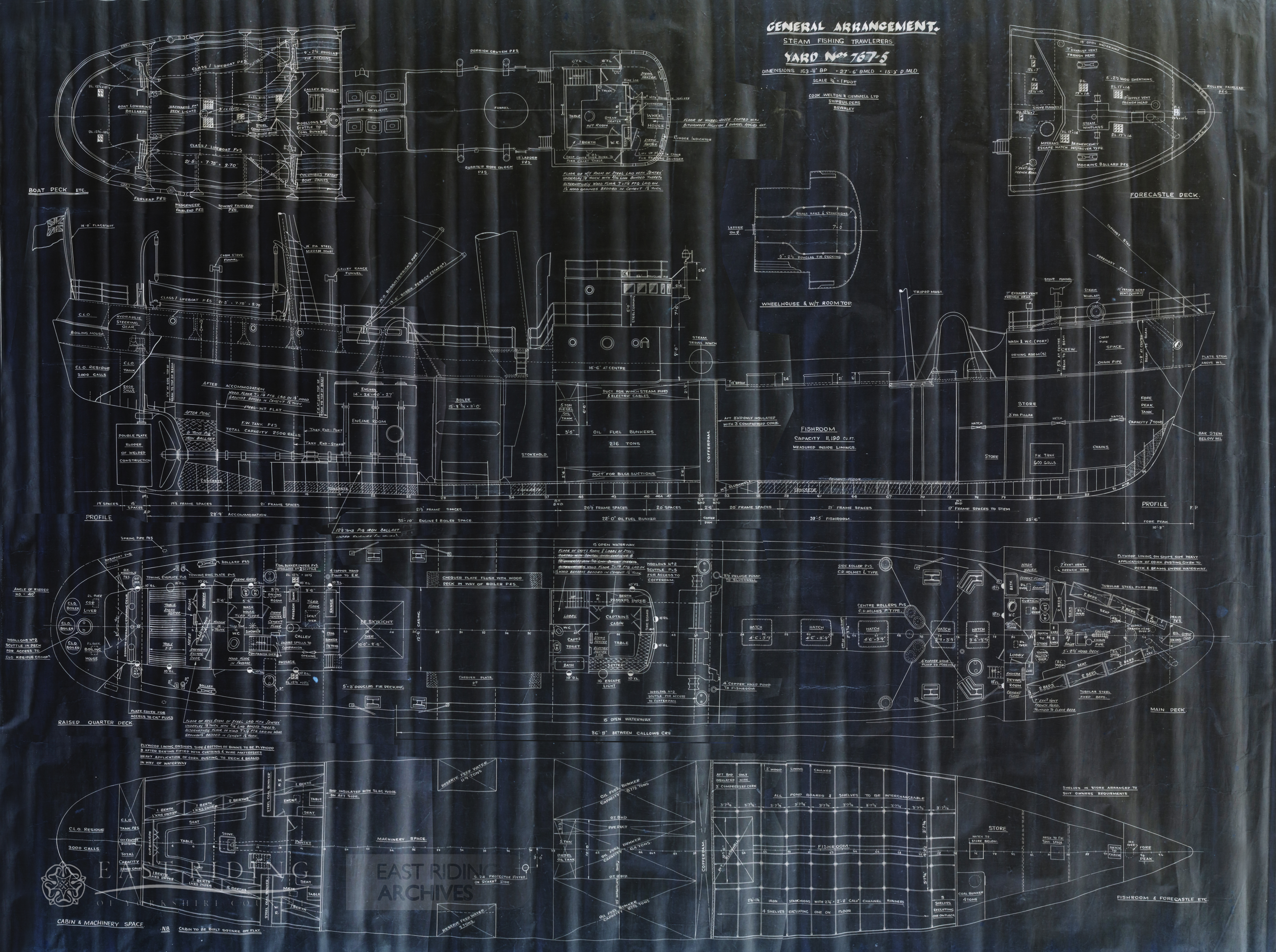

‘Breughel’ Oil Fired Steam Trawler (Yard 765) Launched 01.06.1946
(Inverted) ‘Breughel’ Oil Fired Steam Trawler (Yard 765) Launched 01.06.1946

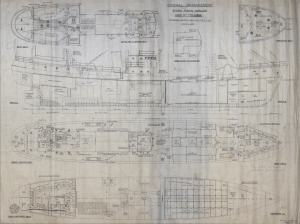

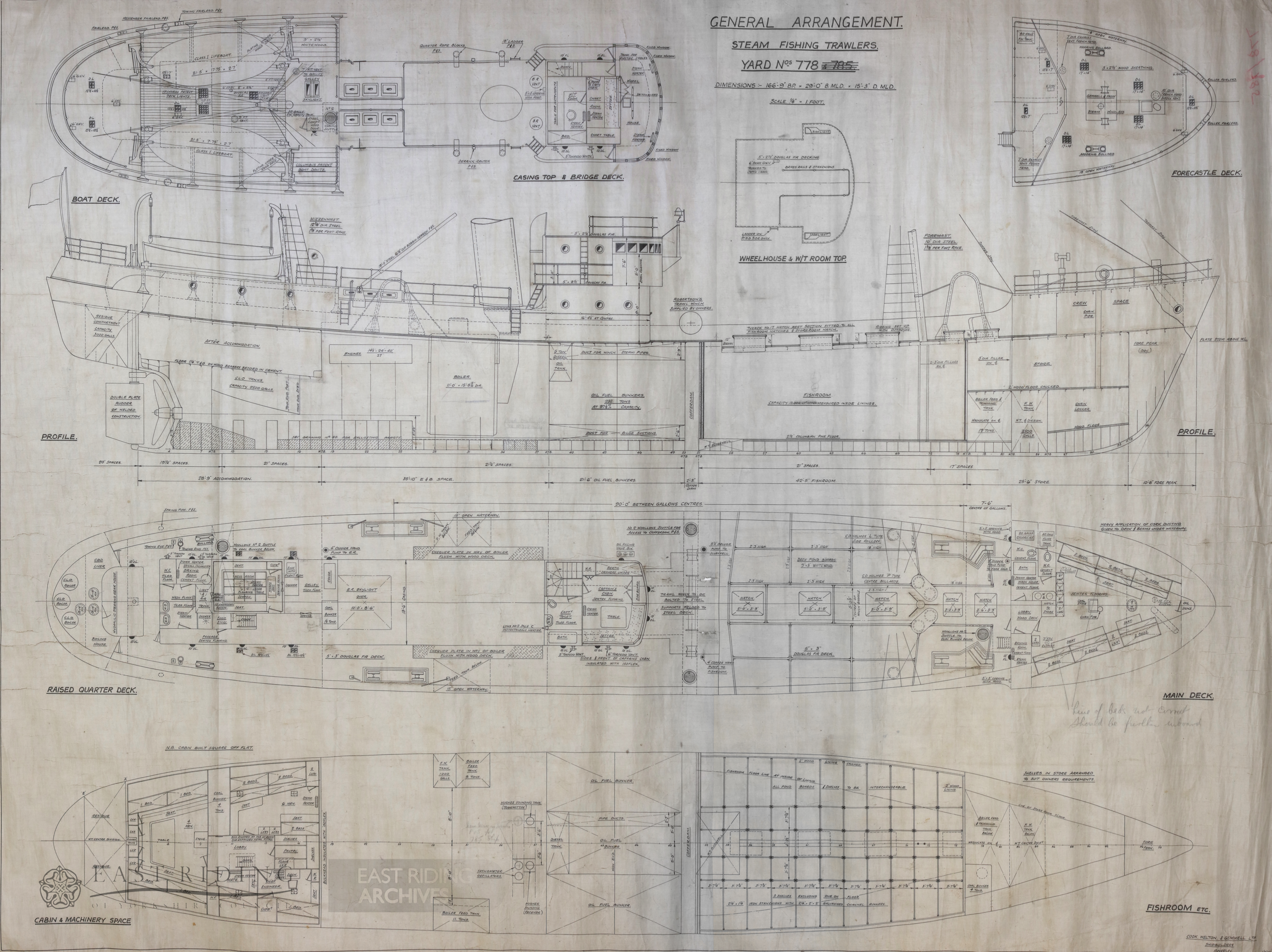

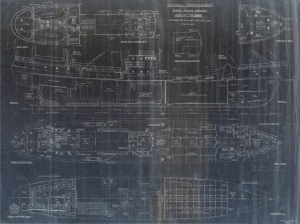

‘St. Crispin’ Oil Fired Steam Trawler (Yard 778) Launched 13.11.1946
(Inverted) ‘St. Crispin’ Oil Fired Steam Trawler (Yard 778) Launched 13.11.1946

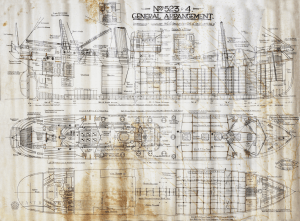

‘St. Honorious’ Steam Trawler (Yard 523) Launched 25.06.1929
(Inverted) ‘St. Honorious’ Steam Trawler (Yard 523) Launched 25.06.1929
‘Kingston Coral’ Steam Trawler (Yard 608) Launched 08.02.1936
(Inverted)‘Kingston Coral’ Steam Trawler (Yard 608) Launched 08.02.1936

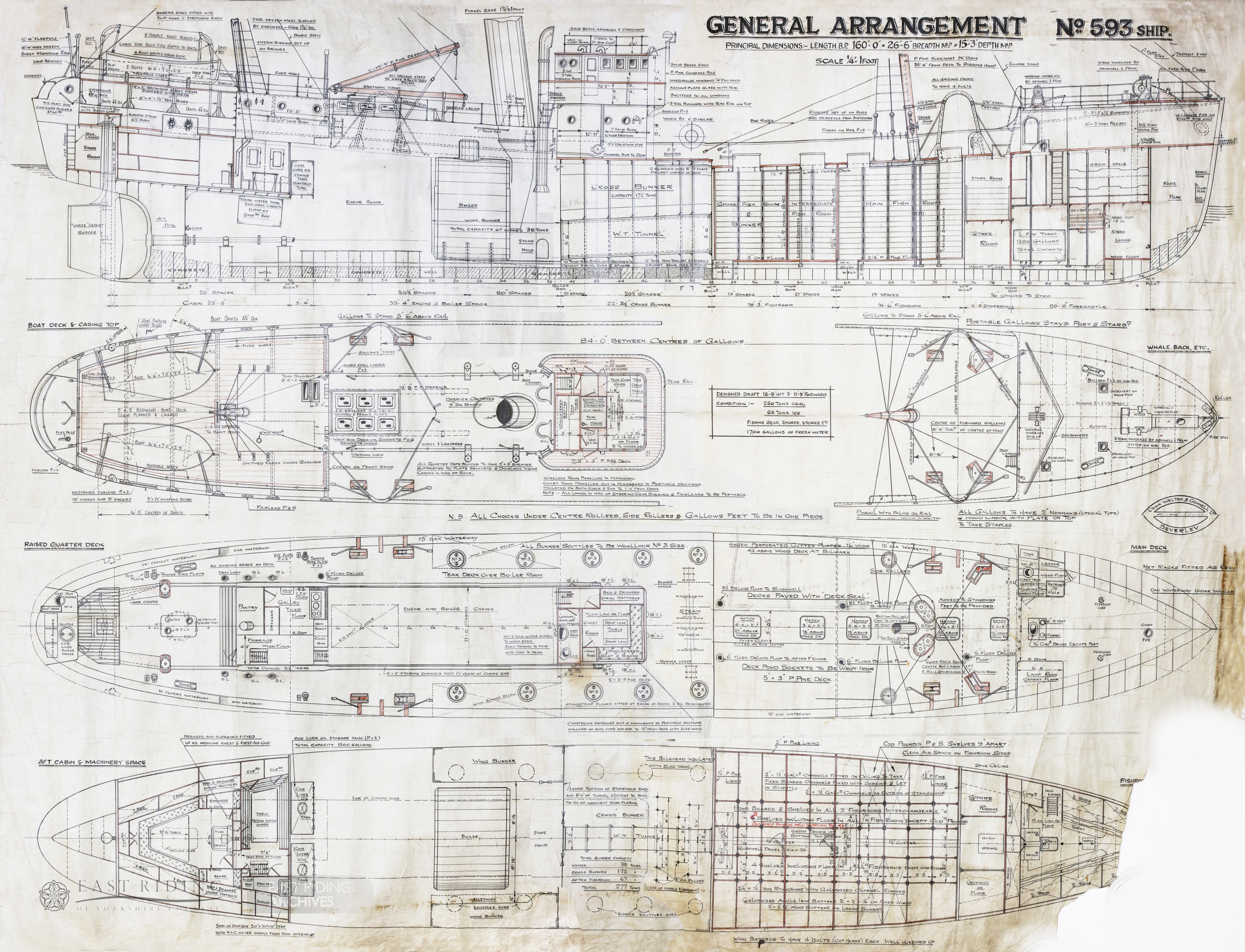

‘Kingston Cornelian’ Steam Trawler (Yard 593) Launched 12.06.1934
(Inverted) ‘Kingston Cornelian’ Steam Trawler (Yard 593) Launched 12.06.1934

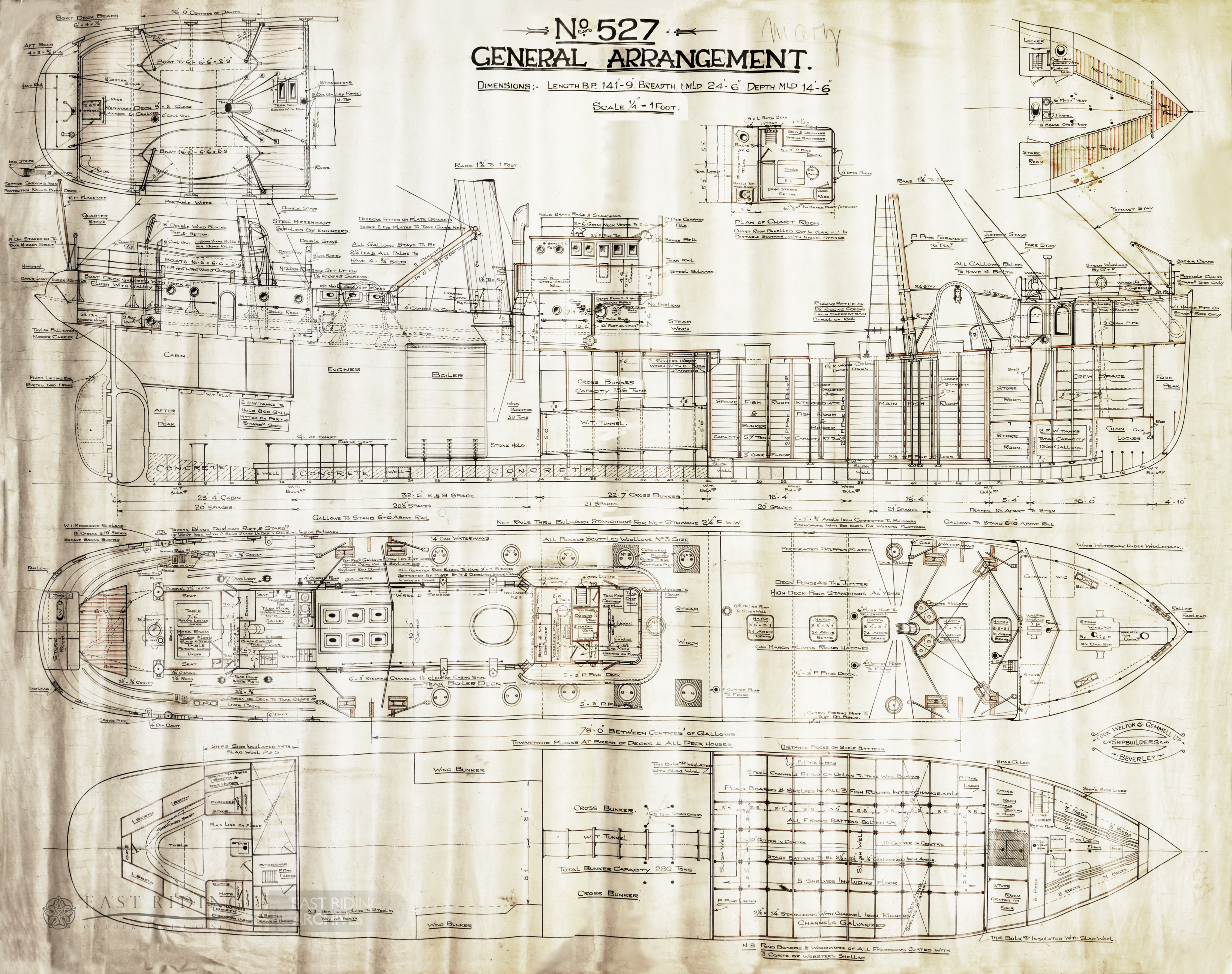

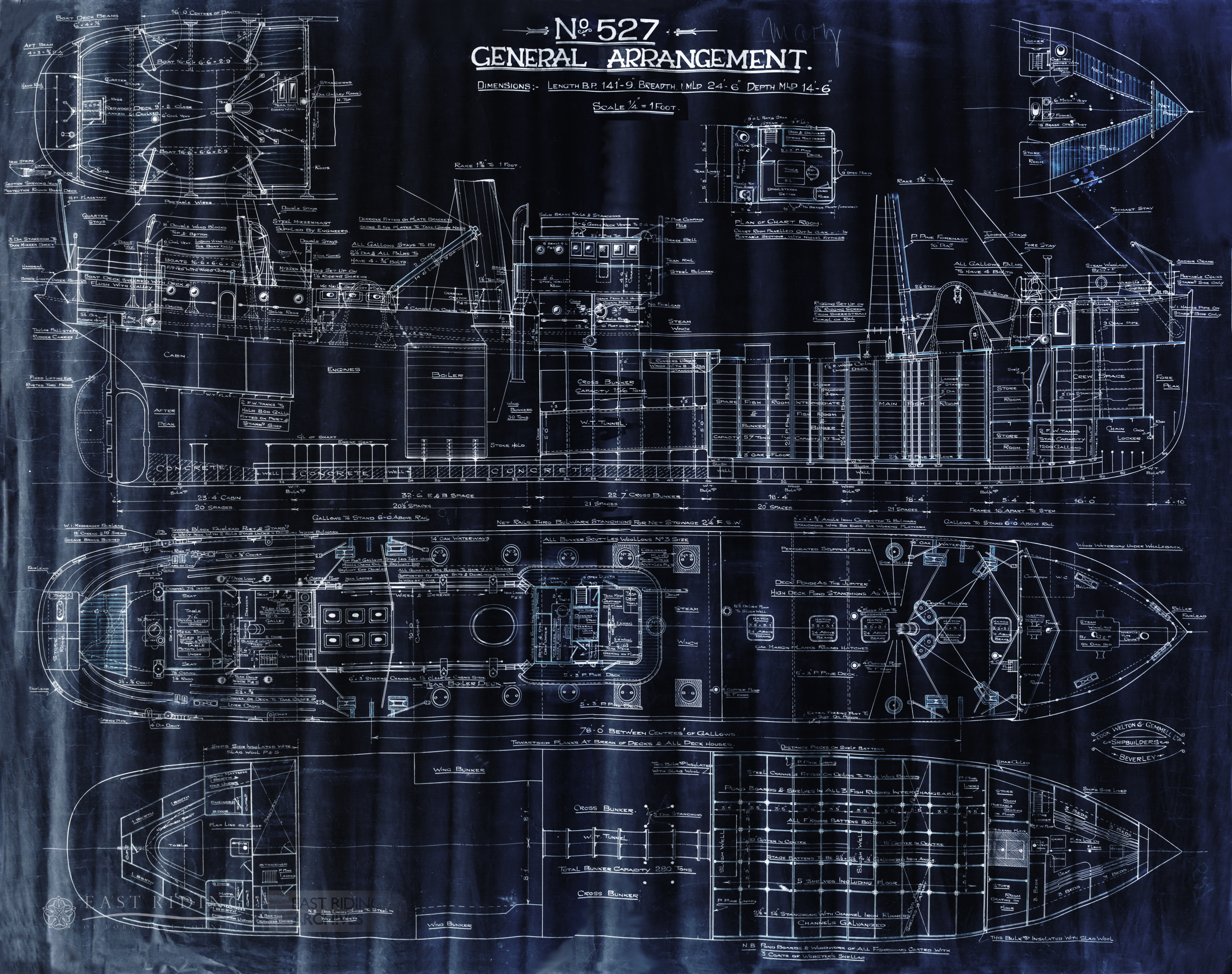

‘Marz’ Steam Trawler (Yard 527) Launched 13.02.1929
(Inverted) ‘Marz’ Steam Trawler (Yard 527) Launched 13.02.1929
‘Foremost 93’ Steam Tug (Yard 648) Launched 12.09.1938
(Inverted) ‘Foremost 93’ Steam Tug (Yard 648) Launched 12.09.1938
‘Yorkshire Belle’ Passenger Pleasure Ship (Yard 645) Launched 07.05.1938
(Inverted) ‘Yorkshire Belle’ Passenger Pleasure Ship (Yard 645) Launched 07.05.1938

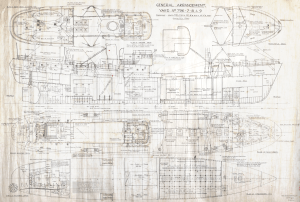

‘Kingston Peridot’ Oil Fired Steam Trawler (Yard 797) Launched 10.07.1948
(Inverted) ‘Kingston Peridot’ Oil Fired Steam Trawler (Yard 797) Launched 10.07.1948

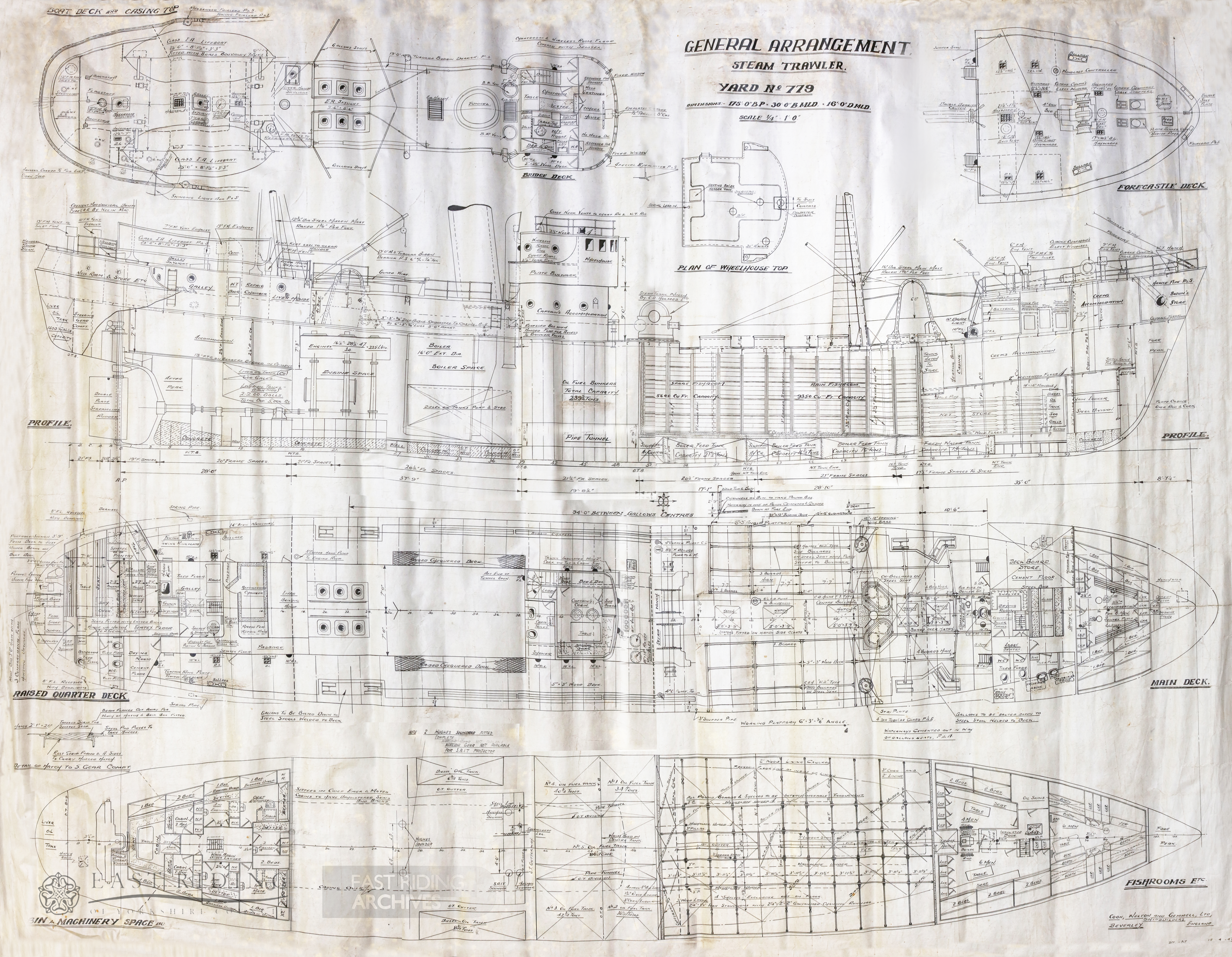

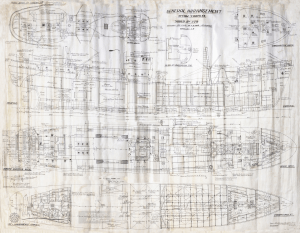

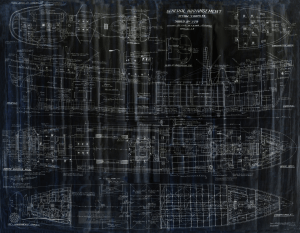

‘Akurey’ Oil Fired Steam Trawler (Yard 779) Launched 15.04.1947
(Inverted) ‘Akurey’ Oil Fired Steam Trawler (Yard 779) Launched 15.04.1947
‘Boston Fury’ Motor Trawler (Yard 909) Launched 19.09.1956
(Inverted) ‘Boston Fury’ Motor Trawler (Yard 909) Launched 19.09.1956

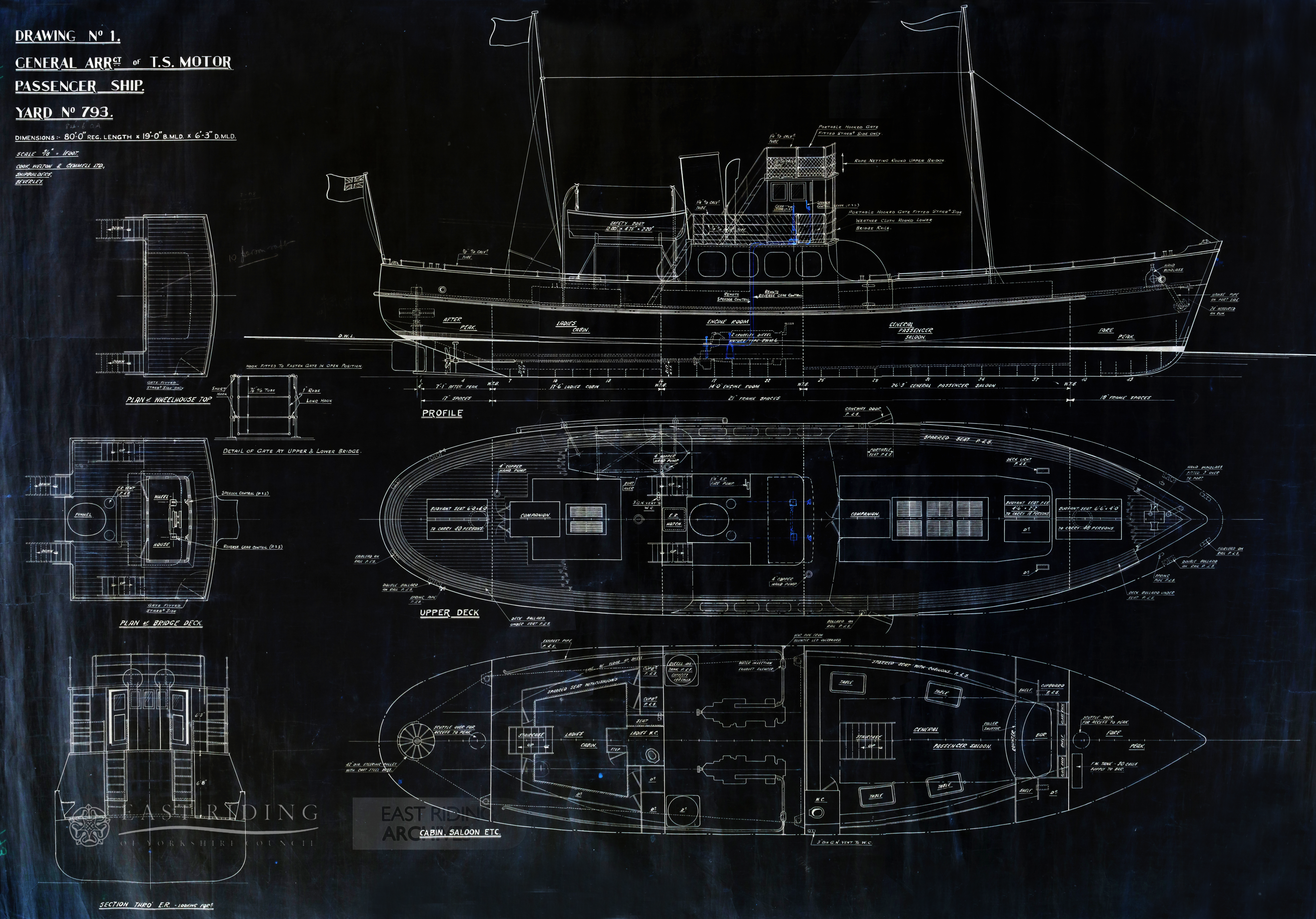

‘Yorkshire Belle’ Passenger Pleasure Ship (Yard 793) Launched 22.05.1947
(Inverted) ‘Yorkshire Belle’ Passenger Pleasure Ship (Yard 793) Launched 22.05.1947
‘China Bakar’ Lightship (Yard 912) Launched 22.08.1955
(Inverted) ‘China Bakar’ Lightship (Yard 912) Launched 22.08.1955

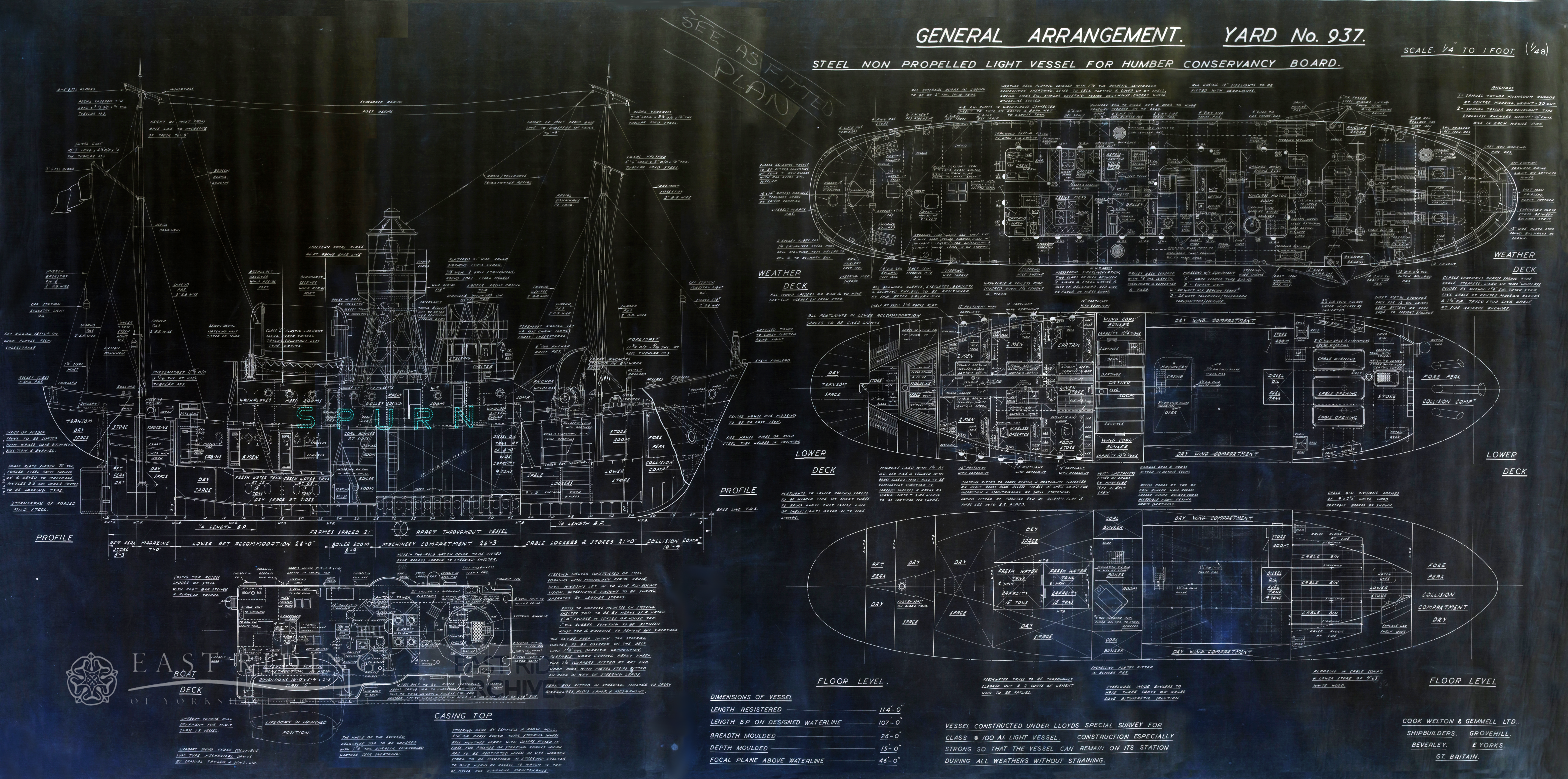

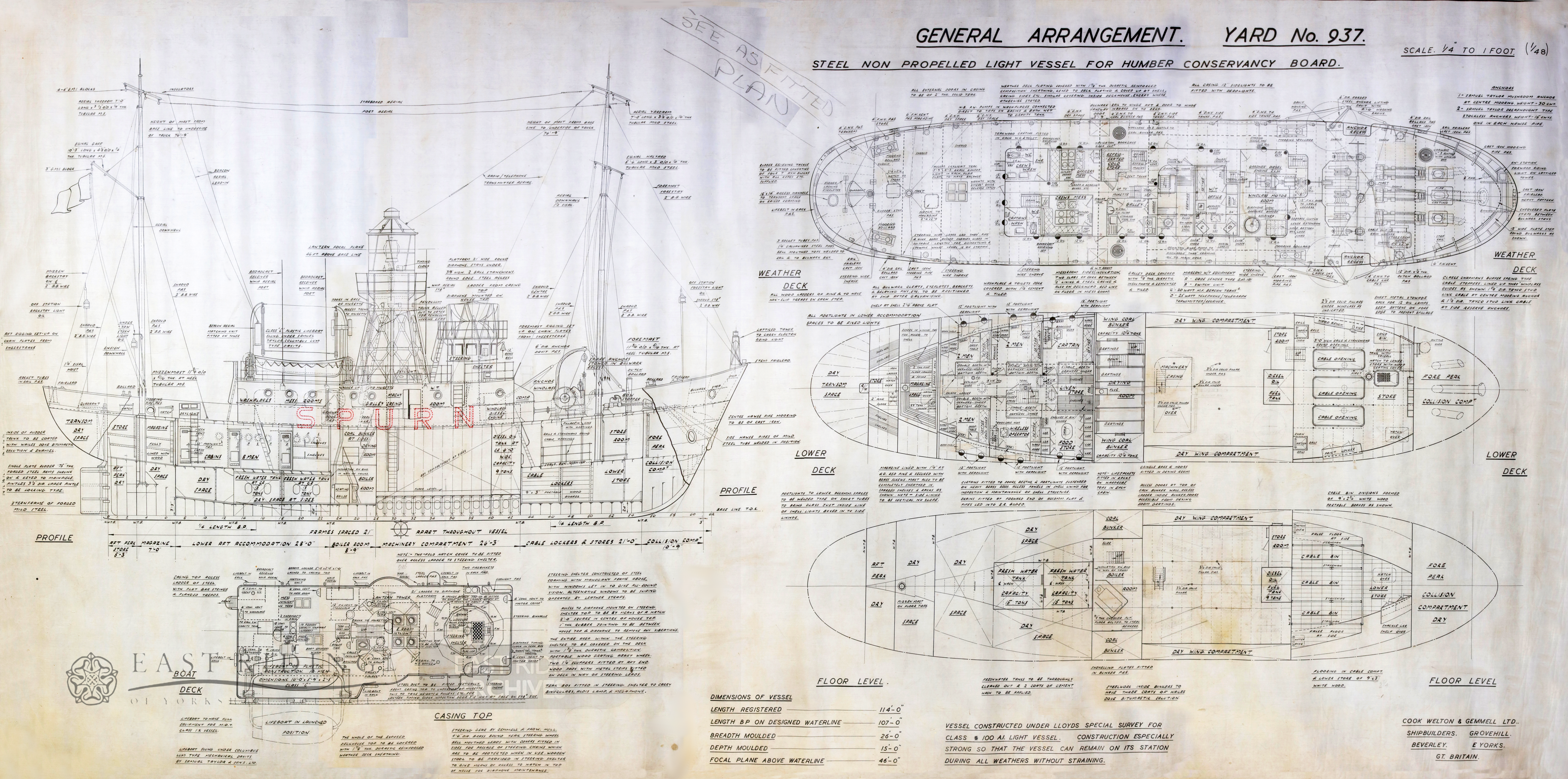

‘Spurn No.14’ Lightship (Yard 937) Launched 29.01.1959
(Inverted) ‘Spurn No.14’ Lightship (Yard 937) Launched 29.01.1959
‘Arctic Corsair’ Motor Trawler (Yard 958) Launched 29.02.1960
(Inverted) ‘Arctic Corsair’ Motor Trawler (Yard 958) Launched 29.02.1960

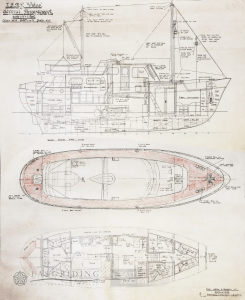

‘Vidas’ Twin Screw Steel Yacht (Yard 962) Launched 31.03.1963
(Inverted) ‘Vidas’ Twin Screw Steel Yacht (Yard 962) Launched 31.03.1963

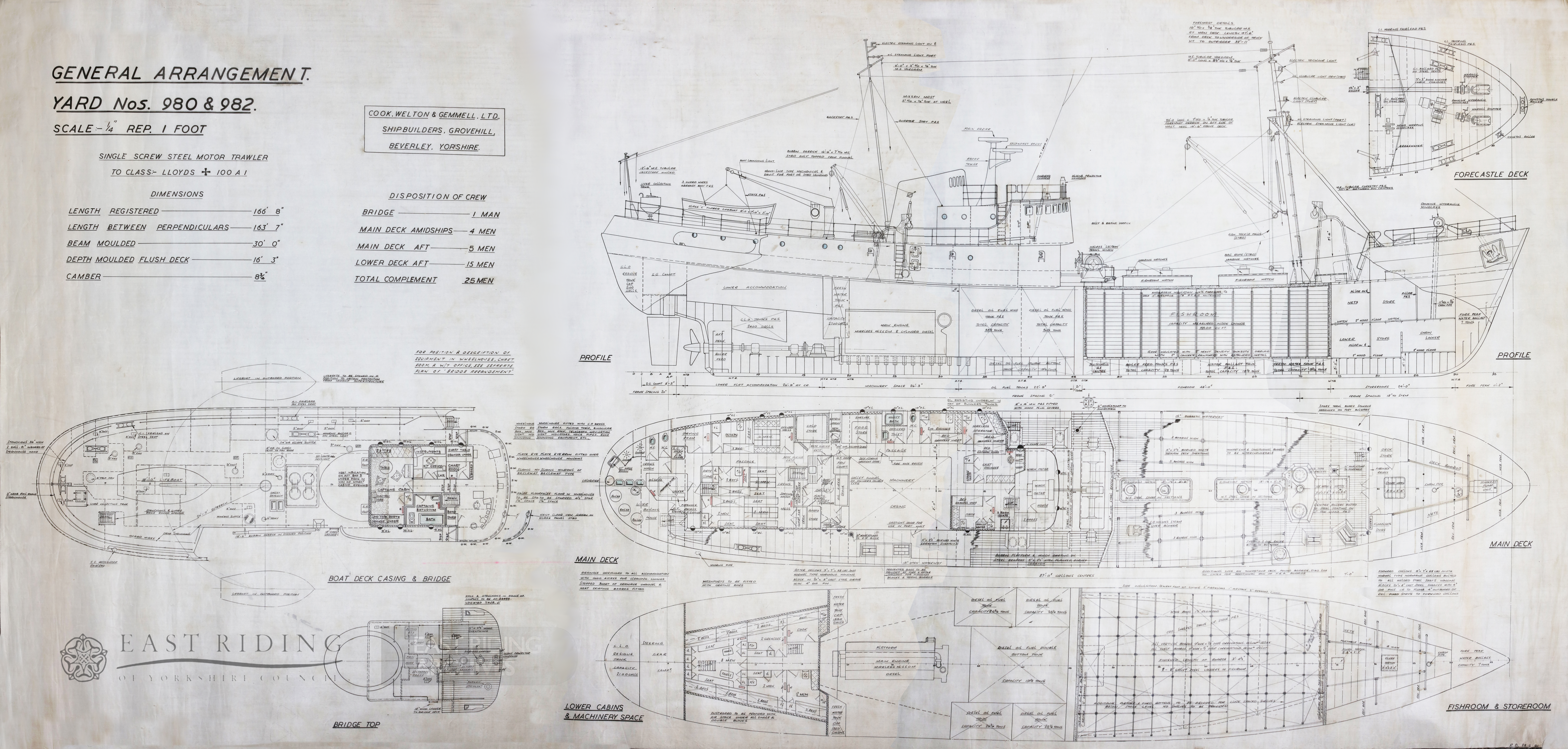

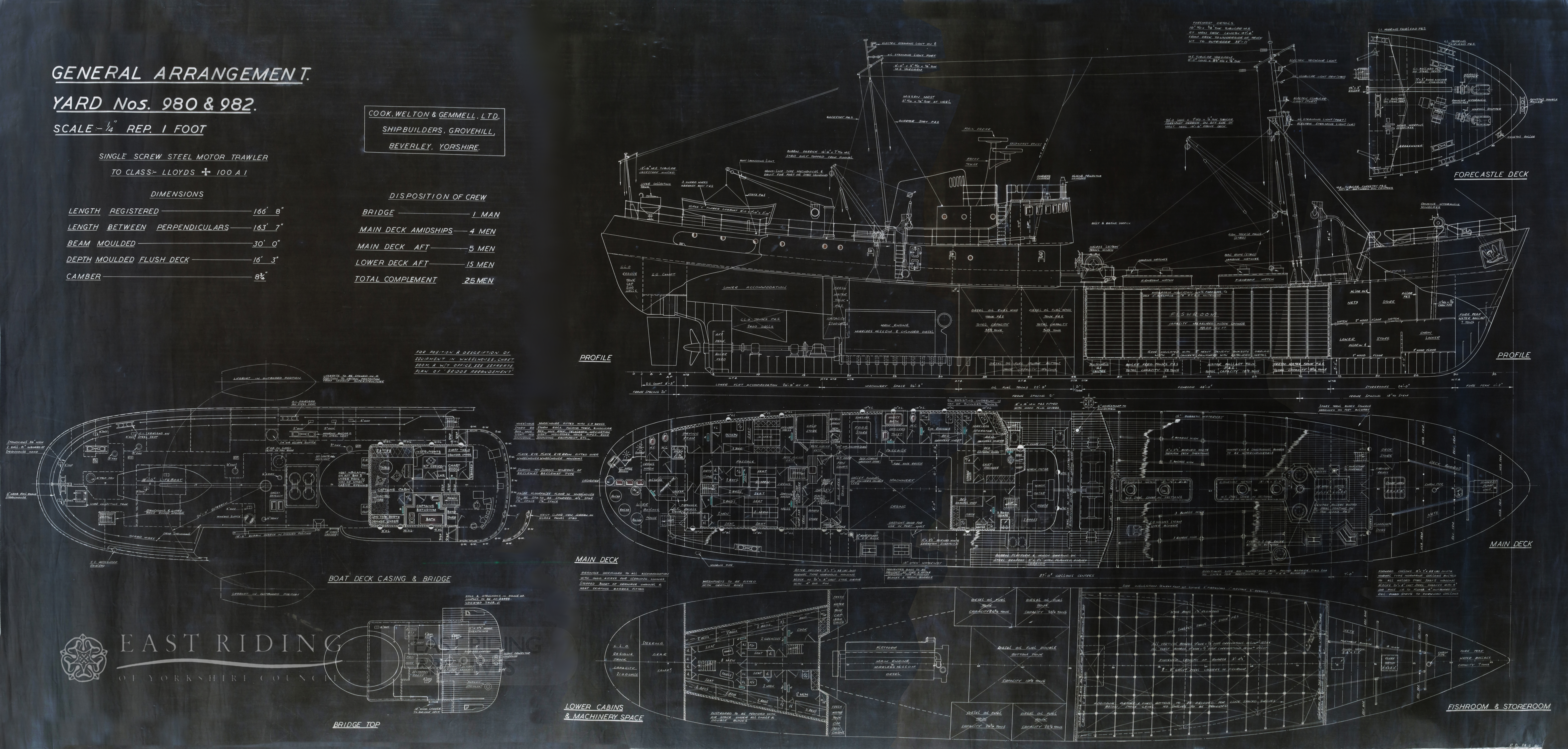

‘Northern Reward’ (Yard 980) Launched 09.01.1962
(Inverted) ‘Northern Reward’ (Yard 980) Launched 09.01.1962
